Slitting Line - High Grade, Heavy Duty, Excellent Quality, Fully Refurbished

Maker: Fimi
Material: Stainless Steel 200/300/400 series in cold rolled or softened condition
Strip Width Range: 600mm - 1600mm
Gauge Range: 0.40mm - 3.25mm
Entry Coil Weight: 30,000kg
Maximum Entry Coil OD: 2100mm
Decoiling Mode: Under/Over
Exit Strip Width: 40mm - 1524mm
Exit Coil Weight: 30,000kg
Maximum Line Speed: 175/350m/min
Slitting Modes: Drive (loop) or Pull Through (Tight Line)
Tooling: Shimless
Slitting Head: AutoTool Change with 4 Capstan
Tool Setting: NLT and Robotic Tooling
Scrap Disposal: Butech Scrap Chopper
Plastic Applicator: Top Side Only
Paper Interleaver: 3 Position Carousel with Paper Cutting Knives
Strip Printer: Willet Ink Jet
Slitting Tolerances: Excellent - details upon request
Edge Burr: Within 5% of material thickness

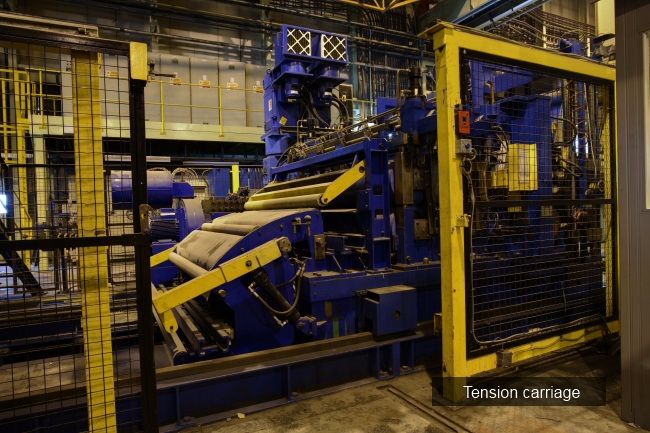

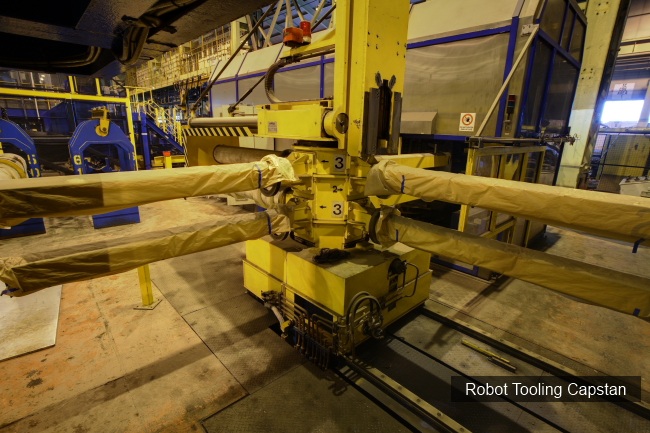

Photo 1: Robot Tooling Capstan	Photo 2: Tension carriage

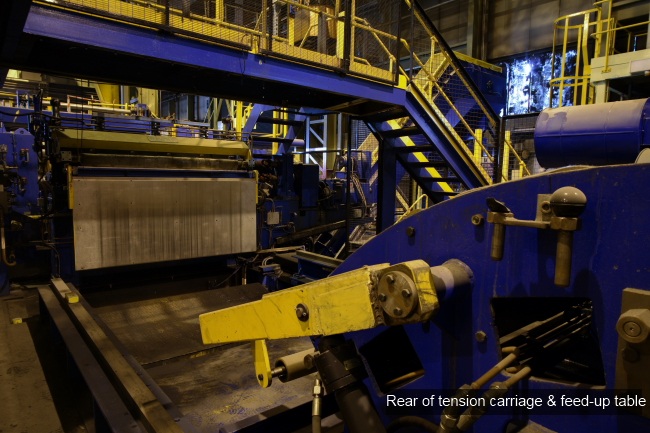

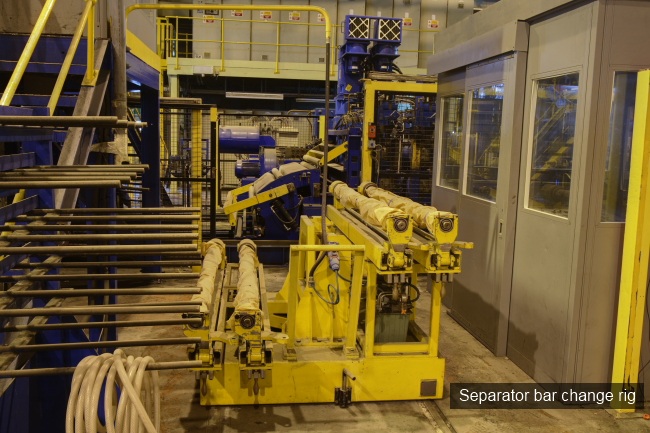

Photo 3: Separator bar change rig	Photo 4: Rear of tension carriage & feed-up table

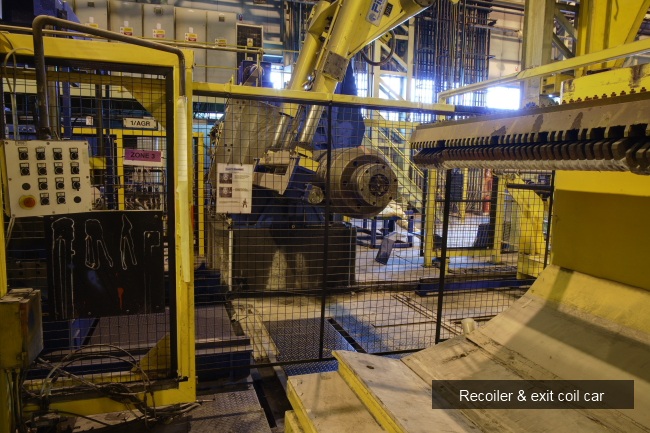

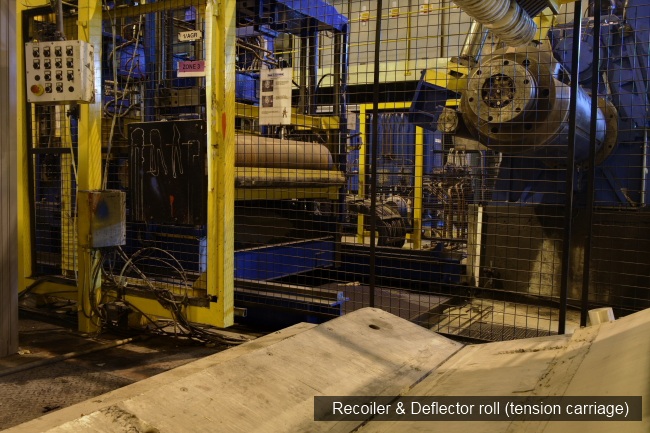

Photo 5: Recoiler & exit coil car	Photo 6: Recoiler & Deflector roll (tension carriage)

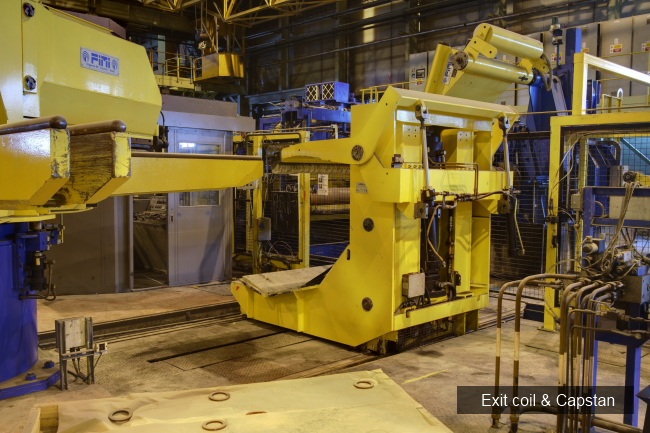

Photo 7: Exit coil & Capstan	Photo 8

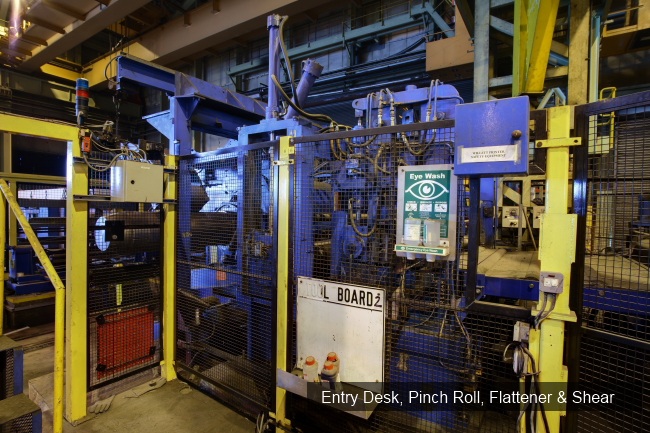

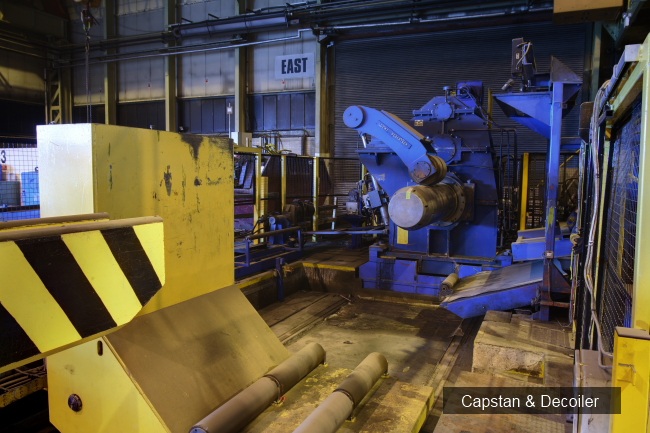

Photo 9: Capstan & Decoiler	Photo 10: Entry Desk, Pinch Roll, Flattener & Shear

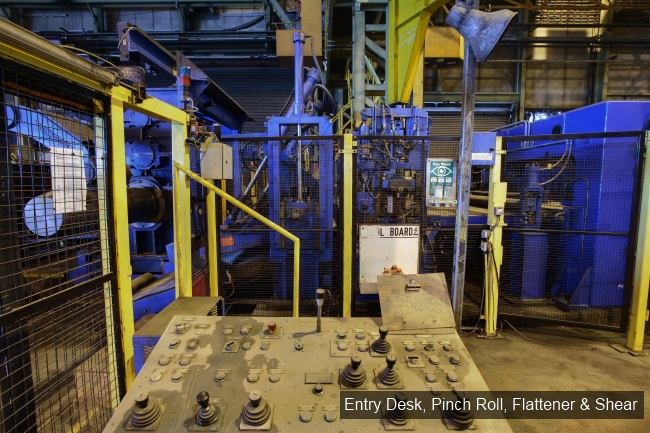

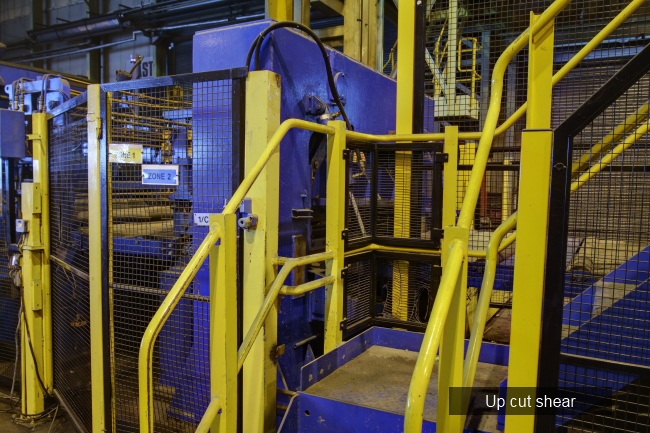

Photo 11: Entry Desk, Pinch Roll, Flattener & Shear	Photo 12: Up cut shear

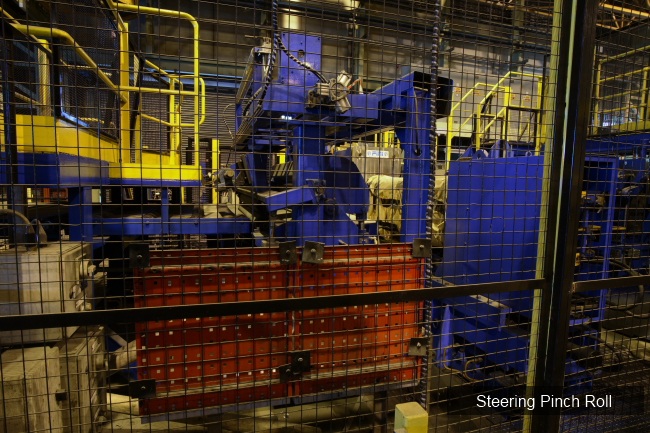

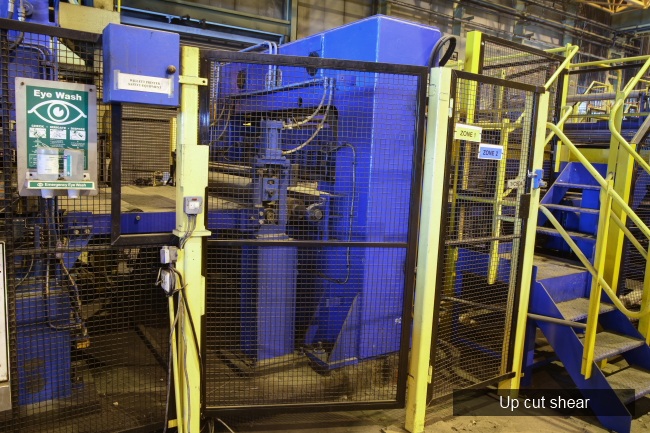

Photo 13: Up cut shear	Photo 14: Steering Pinch Roll

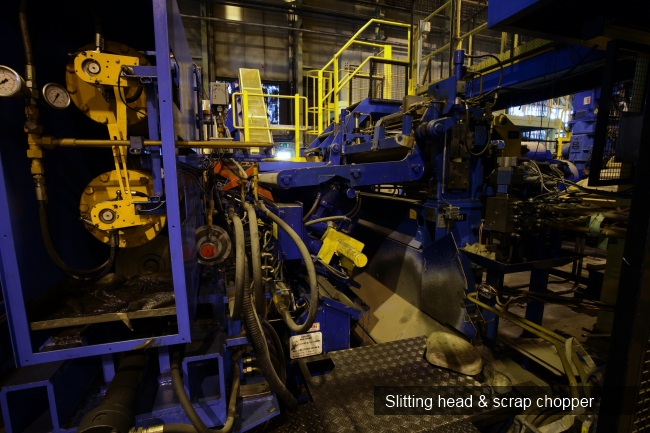

Photo 15: Slitting head & scrap chopper	Photo 16: Slitting head & scrap chopper
